Linking MS Word document properties to PDM variables

Most MS documents can be controlled and linked to SolidWorks PDM, as per the following instructions.

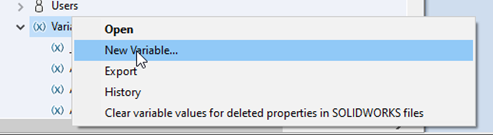

1. In PDM Administration Tools –> Variables node, define PDM variable (Description)

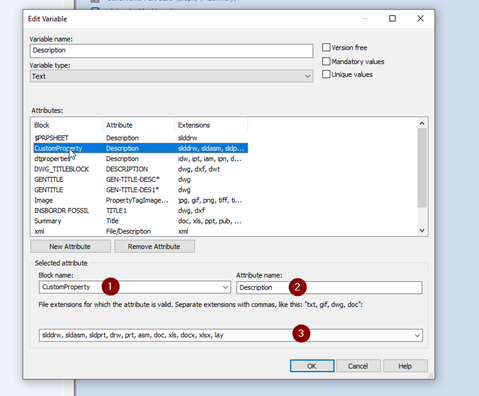

• Define PDM variable New Attribute (CustomProperty)
  • Define Block name (CustomProperty)
  • Define Attribute Name (Description)
  • Link to file extension (Doc, Docx,…etc.)

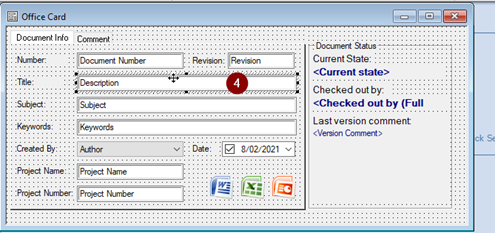

• Link Variable to data Card

• DataCard should Support File extensions
