The benefits of using the Ci Window Tool for a Muti-Panel Door suite
There are several occasions where the CI Window Tool would be the best tool of choice to model and document a Door suite which consists of multiple panel types.

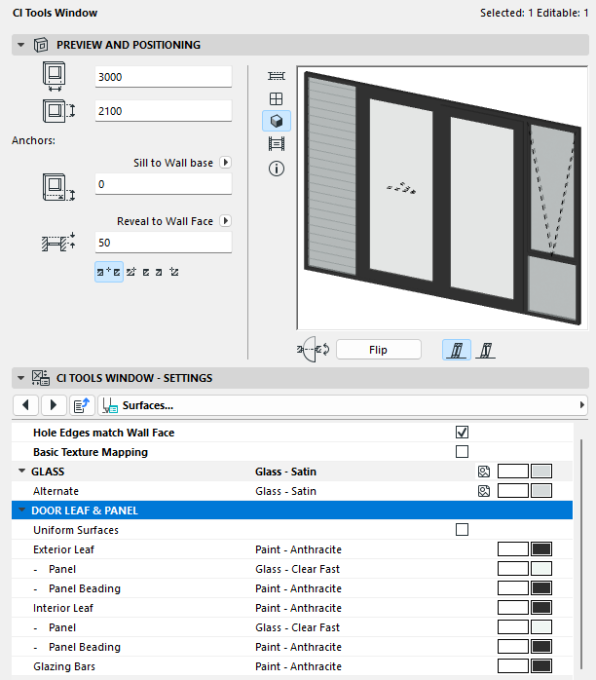

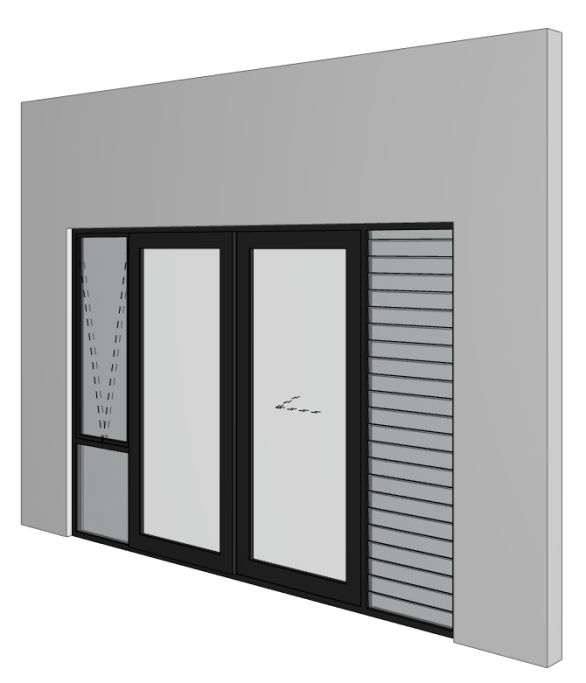

Below is an example showing one single assembly comprised of sliding doors, louvre galleries + awning sash windows as sidelights and to top it off, different glazing types.
The entire suite can not only be modeled but also be scheduled as 1 item!

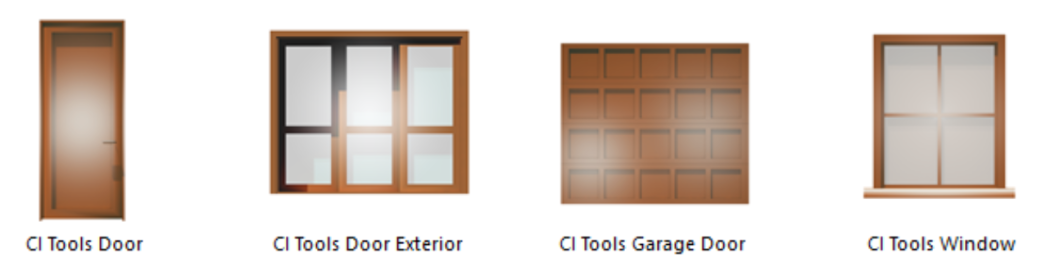

The Ci Tools Doors & Windows are renowned to offer greater modeling flexibility than the default Archicad Doors and Windows. Comprised of only 4 tools, you can choose to either unleash your creativity or simply replicate suites as per manufacturers’ specifications.
