AEC Tip of the Day

Flip site boundary

December 20, 2024

Learn how to quickly correct site boundary direction issues with one simple click in the Site Boundary Editor tool.

Site Boundary Editor tool key feature

With some Site boundaries, the direction of the boundary may not go in the direction you require. The selected boundary has placed 180 degrees from our intended direction; click Flip to turn / rotate the Boundary 180°.

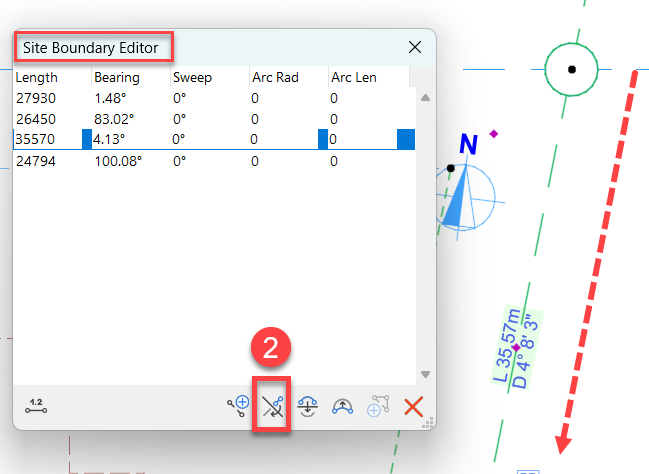

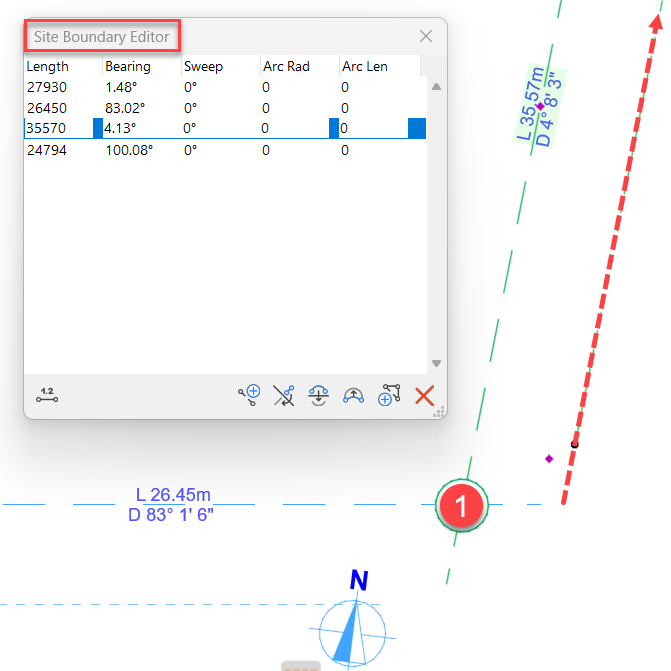

Refer to the screenshots for the steps:
