Have you ever had an entity on your drawing that you can not change the color of? Or have you ever added an entity to the drawing and it is an unexpected color and you can seem to change it to the desired color? Then read on.
There are several places you can change the color of entities and there is a hierarchy which controls which color is used.
Most of us are familiar with the first 2 but often users are not aware of the third.
1. System options

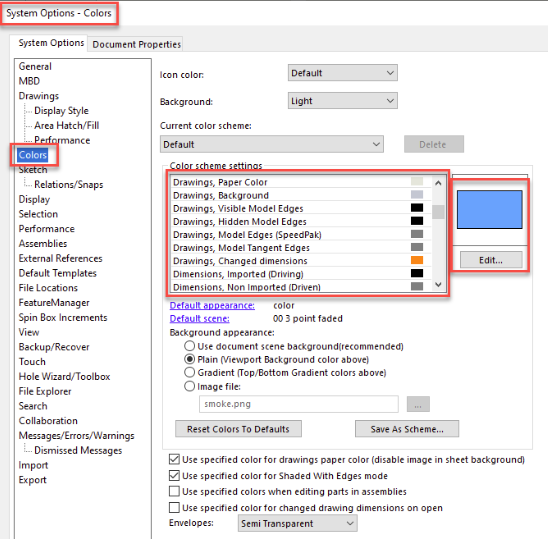

Access: Tools-> options-> System Options tab-> Colors section
2. Layers.
Layers will override system options colors

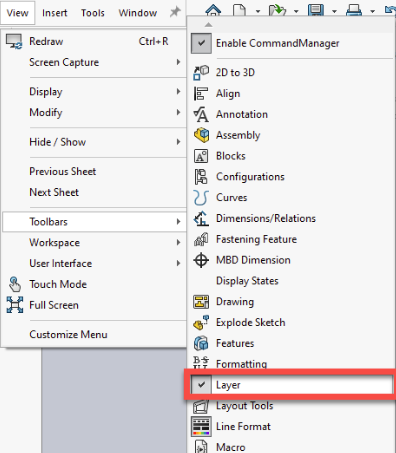

Access: View-> Toolbars-> Turn on the layer toolbar.
The toolbar indicates which layer is activated so any new entity added will be in this color.

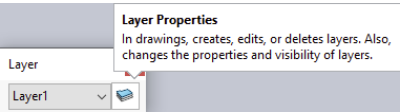

Click layer properties for the list of layers and their colors.
3. Line format.
This overrides both System Options Colors and Layer Colors.
This is the one that sometimes eludes users

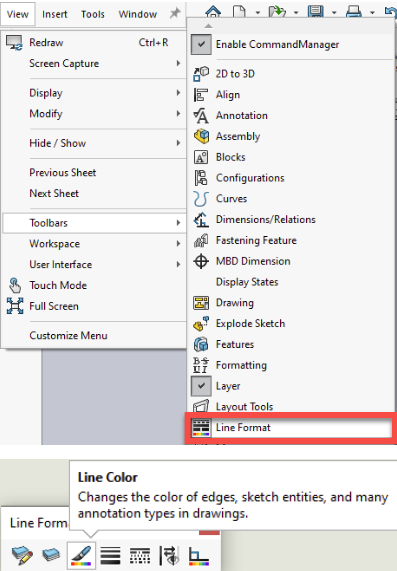

Access: View-> Toolbars-> Line Format toolbar-> Line Color

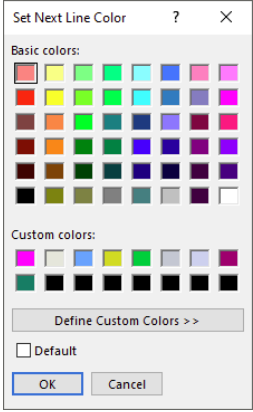

You can change the color of any entity by selecting it and then selecting the color here.
If you select a color without any entity selected then new entities created will be in this color
If you tick default it will use the layer color or color in the system options

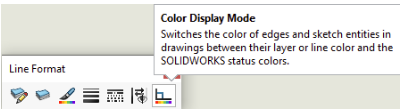

Also on the Line format toolbar, you will find the Color display mode. This will switch between the line format colors/layer colors and the system option colors.
