Linked DWG Layer visibility

Tips and Tricks Joshua Osborne 20 November 2015

, ,

Linked DWG Layer visibility

When you place a DWG or DXF as a Linked Drawing (from File> External Content> Place External Drawing…) you can control the visibility of its layers.

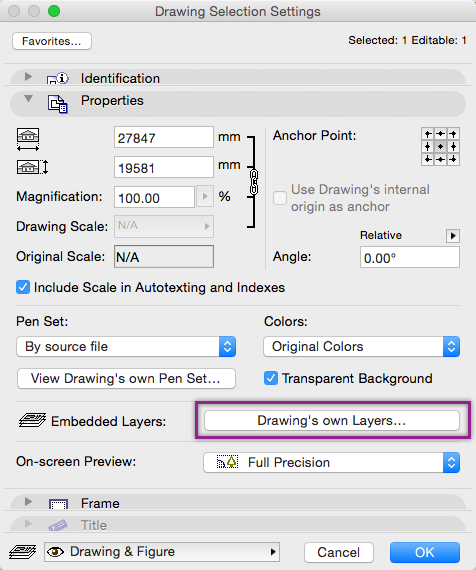

Select the Embedded Drawing and go to its settings:

dwg layers

In the Properties Panel, click on Drawing’s own Layers to switch layers on or off.
